ALU-Line FLAT BAGS

The packaging for flat products.

Easy handling, lying flat and optionally with zipper,
in pharmaceutical and food quality, ideal also for individual parts,...

Muster anfordern

ALU-Line FLAT BAGS  are the ideal flat packaging for individual parts, bulk goods, powder, granules, pastes and liquids. Our aluminium composite film provides optimum protection against moisture, UV light, dirt and mechanical influences. Ströbel ALU-Line bags offer shape stability, aroma preservation and an attractive appearance.

Manuel Christofori Packaging Consultant
Florian Meier Packaging Consultant

CAPABILTIES OF ALU-Line FLAT BAGS

Protection against

very good dust, dirt

very good uv light

very good spray water

very good loss of aroma

very good moisture

very good corrosion
with dessicants

good temperature fluctuations

no; not recommended electro­static discharge



Features

very good Corrosion protection
up to 10 years

very good aroma protection

very good food-certified

very good water vapour barrier

very good weldable

very good temperature resistant

very good printable

very good can be labelled

very good leakage barrier

very good puncture resistant

moderate, conditional vacuum-capable / gas-tight



applications

very good parts

very good bulk material

very good granulate & powder

very good pasty goods

very good retail / POS

very good shipping

very good overseas transport

very good storage

very good long term storage

good liquids



Ideal for

very good food products

very good pharma, medical

very good chemical industry

very good machine construction

very good metal construction

very good mould making

very good military, aviation, space travel

very good high-tech, technology

no; not recommended ESD electronics

very good very good    good good    moderate, conditional moderate, conditional    no; not recommended no; not recommended
All info & data applies to optimal conditions.

TYPES OF FLAT BAGS

Our Ströbel experts are happy to advise you.

+49 (0)9101 99420

2 seams
flat bags

+ easy to print / label
+ slightly more inner volume than 3-edge
+ slightly lower than 3-edge



ENQUIRE NOW

3 seams
flat bags

+ easy to print / label
+ slightly less inner volume than 2-edge
+ super flat lying / stacking: therefore better for automatic filling

ENQUIRE NOW

rear seam
flat bags

+ when side seams are unwanted
+ backside with seam: difficult to print / label
+ valve option is not possible

ENQUIRE NOW

multi chamber
flat bags

+ separating content,
+ partial withdrawal,
+ for multi-component systems, kits, set articles...

SELECT

Standard sizes

AVAILABLE FROM STOCK

Shipping within 24 h

Our in-stock range for ALU-Line FLAT BAGS (3-edge seam), covers the most popular bag sizes. The bags are silver and come with and without zipper.
All pouches are unprinted and can be labelled.

FLAT BAGS - WITHOUT ZIPPER

Inner dimensions Carton contents Request price
100 x 175 mm 250 bags
150 x 225 mm 250 bags
200 x 300 mm 250 bags
300 x 400 mm 250 bags
450 x 600 mm 250 bags
600 x 800 mm 250 bags

FLAT BAGS - WITH ZIPPER & TEAR NOTCH

Inner dimensions Carton contents Request price
125 x 205 mm 300 bags

FILM: ALU-Line "PREMIUM"    PET 12μ / AL 12μ / LDPE 75μ  ⎮ Versatile. High quality protection.



MANUFACTURED IN GERMANY

TAILOR-MADE

Shorter, longer, narrower, wider, more colourful... We will conjure up the perfect Ströbel ALU-Line FLAT BAGS in your desired size, colour and print!
Precisely tailored to your application...

MADE IN BAVARIA, GERMANY

OPTIONS FOR ALU-Line FLAT BAGS

tear notch

easy to open

lip

easy filling due to protruding lip

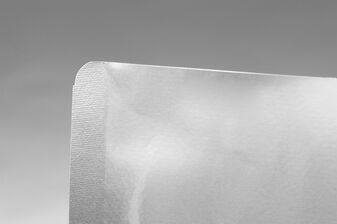

rounded corners

stylish, round corners

zipper

easy resealing

euro-holes

easy to hang up at retail

self-adhesive sealing

adhesive strips for easy closure

valve

pressure relief valve for outgassing products or vacuum valve for vacuum drawing

hot stamping

cost-effective bag printing (partial, monochrome)

multicolour printing

Printing with 4C or up to 8 spot colours (minimum quantity)



WHAT FITS TOGETHER?

2-EDGE, 3-EDGE, BACK SEAM...

Our production options depend on the type of flat bag



  flat bags

  2 seams 3 seams rear seam
zipper
self-adhesive sealing
tear notch
rounded corners
euro-holes
lip
valve
hot stamping 1
multicolour printing
1)  monochrome, different colours available



GET IN TOUCH

+49 (0)9101 99 420

Contact

GET IN TOUCH

+49 (0)9101 99 420

Contact

FILM COLOUR

ALU-SILVER is our STANDARD.

YOUR CHOICE OF COLOUR

Aluminium composite film for ALU-Line FLAT BAGS offers all conceivable colour possibilities. Special colours are available and subject to a minimum order quantity*.

* approx. >15.000 (dependent on bag size)

YOUR LOGO
AND PRINT

We give your ALU-Line FLAT BAGS a unique outfit - according to your specifications. Our printing processes in 4c full colour or up to 8 spot colours are ideally suited for food packaging.

Our monochrome hot stamping printing technique is the ideal alternative for all savers. Ströbel ALU-Line FLAT BAGS can of course also be labelled.

Jetzt Anfragen

ALU-Line FILM QUALITIES

ALU-Line "Premium" (AL+PE)

  PET 12µm  / AL 12µm / LDPE 75µm

our standard compound. Versatile.
High quality protection.

ALU-Line "aroma preservation"

  PET 12µm / AL 7µm / LDPE 100µm

optimised for food aroma preservation packaging. High quality protection.

Other composites

other qualities and
thicknesses on request




TECHNICAL SPECIFICATIONS

Film ALU-Line
FILMS: Premium AL+PE & Aromaschutz

Aluminium composite film; Look: Silver
Corrosion protection Moisture protection   Corrosion Protection   suitable for long-term storage
very good
Duration
Corrosion protection (up to)
10 years
with Ströbel topdry® dessicants
moisture protection very good
water vapour barrier very good
Aroma protection Premium Aroma Preservation for sensitive foods like coffee, tea, spices, fitness powders... recommended for food packaging
very good
Protection
How it works
Ströbel barrier layer film + Ströbel topdry® dessicants bind & neutralise corrosive humidity and thereby create a regulated protective atmosphere. Our aroma barrier preserves freshness and taste.
Manufacture
Pouches

Thickness Bags Premium: 100 µm
Aromaschutz: about 120 µm
Layers Bags Premium:
PET 12µm ⎮ AL 12µm ⎮ LDPE 75µm
Aromaschutz:
PET 12µm ⎮ AL 7µm ⎮ LDPE 100µm
Other Qualities Bags
On request
Temperature tolerance Premium:
–40°C to +80°C
Aromaschutz:
–40°C to +80°C
Water vapour transmission rate Premium:
≤ 0,05 to 0,1 g/m2/day
Aromaschutz:
≤ 0,1 g/m2/day
Puncture resistance Premium:
~ 68 N
Aromaschutz:
On request
Standards Premium:
TL 8135-0003, DIN 55 531, MIL_PRF-131-J, EU Regulation 1935/2004 & 10/2011 (food compliant)
Aromaschutz:
EU Regulation 1935/2004 & 10/2011 (food compliant)

very good excellent    good good     moderate, conditional limited, depends    no; not recommended no; not recommended

RECOMMENDED

Dessicants Ströbel topdry®

Topdry® & MiniPax bind moisture. Essential for dry packaging and corrosion protection

Select

Humidity indicator cards

Measure & monitor humidity inside the packaging

Select

Heat Sealing Tongs

professional sealing of heat-sealable films; easy to operate; sealing-time adjustable; fast start-up time

Select

Transport Monitoring

Data-loggers, shock and tilt indicators. Monitor the transport conditions of your valuable products

Select

DOWNLOADS

OUR STRÖBEL ALU-LINE GUARANTEE

"MADE IN FRANKONIA, GERMANY"

Our in-house production, German and European standards, certifications and supply chains guarantee: our ALU-Line FLAT BAGS are free of dangerous toxins, child labor and bad working conditions. No need to worry about inferior protective films and consequential damage to your valuable machines and products. The barrier properties of our films are guaranteed.

Yours sincerly,
Rainer Ströbel

ALU-Line FLAT BAGS

We guarantee the following manufacturing conditions:

Origin

bag & pouch production
film production
sales & distribution

Sustainability

environmental standards
labour conditions
human rights

Standards

TL 8135-0003

DIN 55 531

MIL_PRF-131-J

EU regulation 1935/2004 & 10/2011 (food compliant)

Ecology

regional production (Ströbel, Germany)

regional supply chains

NO far-east import

short transport routes

two large on-site solar power plants

Contaminent-free

no risks of far-east goods

certified for food

bisphenol A free

silicone free

latex free

phthalates free

Certificates

ISO 9001

Bavaria environmental pact

honorable merchant

Ecovadis (silver)

quality network of environmentally conscious companies
