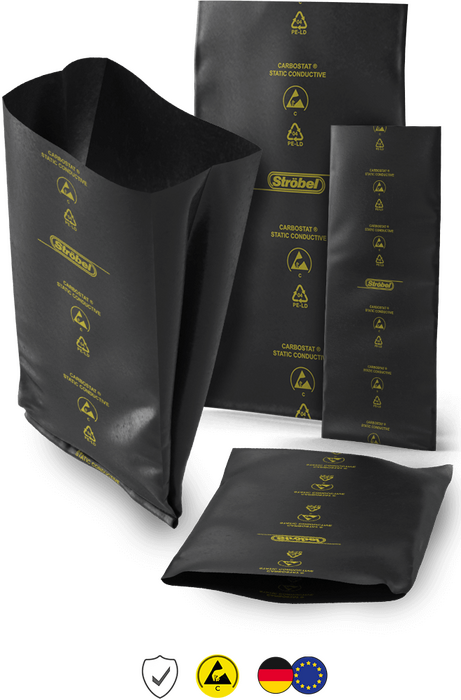

CONDUCTIVE
BAGS & POUCHES

AVOID CHARGING

Packaging for low-sensitivity components or within an ESD protection zone

FILM:

  • no charging
  • norm: based on EN 61340-5-3
  • typical surface resistance 104 – 105 Ω
    vol
  • use only inside ESD protection zones (EPA) or for delivery into an EPA
  • not suitable for components with batteries, capacitors or similar
  • weldable

FLAT & SIDE GUSSET BAGS :

  • packaging for parts and bulk material...

ENQUIRE NOW

„ Volume conductive films obtain their conductive properties by adding carbon (soot). Charging is not possible. The use of this material is only recommended for components of low sensitivity or within an ESD protection zone, as voltage peaks can strike through. This packaging is not suitable as an enclosing packaging for components with batteries, capacitors or similar. For these components or sensitive electronics we recommend our topshield or topdry packaging... ”

Manuel Christofori Packaging Consultant

EXAMPLES

CHOOSE A SHAPE

Flat bags

flat stacking

easy handling

ideal for automated filling

for flat products, individual parts...

ENQUIRE NOW

Side gusset bags

good shape retention

space-saving at the POS

ideal for individual parts

bulk material

smaller devices...

ENQUIRE NOW

ALSO AVAILABLE AS

box covers

You can also purchase our conductive films as tailor-made sealable covers for industrial goods

Select

crate liners

You can also purchase our conductive films as tailor-made liners for crates, boxes, small load carriers and cartons

Select

side gusset covers / liners

You can also purchase our conductive films as side gusset covers & liners (for large quantities)

Select

Film Rolls & Cuts

Alternatively you can purchase our conductive film as wholesale rolls or as custom cuts.

ENQUIRE NOW

Alternative Forms

Bags on perforated rolls, tubular films, special solutions... ? Just ask your Ströbel expert.

ENQUIRE NOW

GET IN TOUCH

+49 (0)9101 99 420

Contact

GET IN TOUCH

+49 (0)9101 99 420

Contact

CAPABILTIES OF BLACK CONDUCTIVE BAGS

Protection against

good electro­static discharge

very good dust, dirt

very good spray water

very good uv light

moderate, conditional moisture

moderate, conditional temperature fluctuations

no; not recommended corrosion

no; not recommended loss of aroma



Features

good ESD protection

very good weldable

very good can be labelled

good temperature resistant

good puncture resistant

moderate, conditional water vapour barrier

no; not recommended leakage barrier

no; not recommended vacuum-capable / gas-tight

no; not recommended printable

no; not recommended Corrosion protection

no; not recommended food-certified

no; not recommended aroma protection

applications

very good bulk material

very good granulate & powder

very good parts

good shipping

moderate, conditional retail / POS

moderate, conditional storage

no; not recommended overseas transport

no; not recommended long term storage

no; not recommended pasty goods

no; not recommended liquids

Ideal for

good ESD electronics

moderate, conditional machine construction

moderate, conditional metal construction

moderate, conditional mould making

moderate, conditional military, aviation, space travel

moderate, conditional high-tech, technology

no; not recommended pharma, medical

no; not recommended chemical industry

no; not recommended food products

very good sehr gut    good gut    moderate, conditional mäßig, bedingt    no; not recommended nein; nicht empfohlen

RECOMMENDED

Dessicants Ströbel topdry®

Topdry® & MiniPax bind moisture. Essential for dry packaging and corrosion protection

Select

Humidity indicator cards

Measure & monitor humidity inside the packaging

Select

Impulse Sealing Tongs

professional sealing of PE, PP and PVC films; easy to operate; sealing-time adjustable; quickly ready for use

Select

Transport Monitoring

Data-loggers, shock and tilt indicators. Monitor the transport conditions of your valuable products

Select

TECHNICAL SPECIFICATIONS

ESD protection ESD protection - conductive
volume-conductive

good
Film LDPE film with added carbon ; Mono material; Look: black opaque
Surface Resistance
Typical values
104 – 105 Ω
vol
Shielding moderate, conditional
Dissipative very good
Faraday Cage
Volume-conductive
Suitable for
Inside EPA zones
very good
Suitable for
Outside EPA zones
moderate, conditional
Standards based on EN 61340-5-3
Corrosion protection
no; not recommended
moisture protection moderate, conditional
water vapour barrier moderate, conditional
Thickness Bags 80 µm
Other Qualities Bags
Layers Bags Monomaterial
Temperature tolerance On request
Water vapour transmission rate On request
Puncture resistance On request
Manufacture
Pouches


very good excellent    good good     moderate, conditional limited, depends    no; not recommended no; not recommended

TAILOR-MADE
FOR YOU

Shorter, longer, higher, wider,...
Our experts manufacture your BLACK CONDUCTIVE BAGS perfectly customised to your specific requirements. Just ask us...



MADE IN GERMANY & THE EU

DOWNLOADS


OUR ESD "CONDUCTIVE BLACK" GUARANTEE

"MADE IN GERMANY & THE EU"

Our German & European production, standards, certifications and supply chains guarantee: our BLACK CONDUCTIVE BAGS are free of dangerous toxins, child labor and bad working conditions. No need to worry about inferior protective films and consequential damage to your valuable products. The ESD- and protective properties of our films are guaranteed.

Yours sincerly,
Rainer Ströbel

RESPONSIBLE MANUFACTURING

For all our BLACK CONDUCTIVE BAGS we guarantee the following manufacturing conditions:

Origin

bag & pouch production
film production
sales & distribution

Sustainability

environmental standards
labour conditions
human rights

Standards

based on EN 61340-5-3

Ecology

German & European production

German & European supply chains

NO far-east import

short transport routes preferred

two large on-site solar power plants

Contaminent-free

Yes

no risks of far-east goods

Certificates

ISO 9001

Bavaria environmental pact

Honorable merchant

Ecovadis (silver)

Quality network of environmentally conscious companies
