topdry EMI-SHIELDING
BAGS & POUCHES

ULTIMATE SHIELDING & MOISTURE PROTECTION

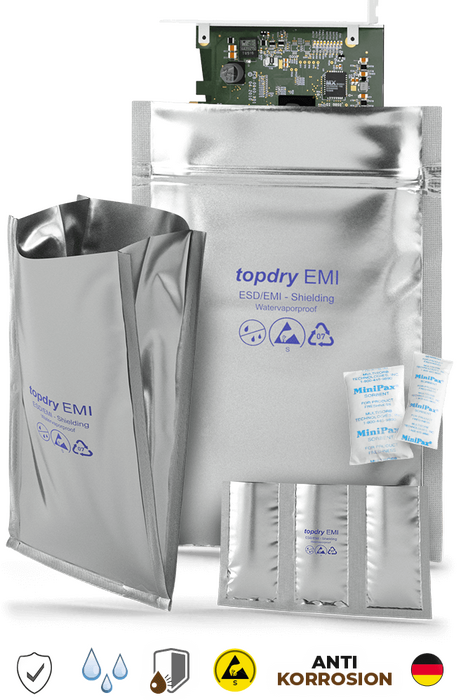

Directly from our factory: Ströbel topdry EMI-shielding bags & pouches provide our best protection for electronically sensitive components (ESDS) against electrostatic discharge, moisture, corrosion and electrostatic fields

FILM:

  • the best protection for highly sensitive electronics: circuit boards, IC bars, graphic cards and electronic components
  • up to 5 years CORROSION PROTECTION
    with topdry® desiccants
  • according to IPC/JEDEC J-STD-033C
  • suitable forlong-term storage
  • vacuum capable
  • typical surface resistance 105 – 1011 Ω
    emi
  • electrical shielding < 5 nJ
  • use in and outside ESD protection zones (EPA)

FLAT BAGS, SIDE GUSSET BAGS & MULTI CHAMBER BAGS :

  • packaging for parts, bulk material and multipart sets...

ENQUIRE NOW

Our ultimate protection for electronically sensitive components (ESDS). Ströbel topdry EMI-Shielding bags & pouches are particularly suitable for use outside an ESD protection zone (EPA). Our film creates a protective "Faraday cage" around your product; Voltage peaks cannot pass through. Due to a special, moisture impermeable multilayer topdry offers protection against moisture and electrostatic charges.



With added Ströbel topdry desiccants, moisture within the EMI barrier-film packaging gets absorbed. Your products can be stored long-term - for up to 5 years - protected from corrosion. topdry® film also excels for vacuum packaging applications.



Buy topdry products directly from us as the manufacturer - for high efficiency, short delivery times and top prices. Individual projects & wishes can be realised with a maximum of flexibility... Within the heart of europe – short distance is the key... ”

Manuel Christofori Packaging Consultant

EXAMPLES

CHOOSE A SHAPE

Flat bags

flat stacking

easy handling

ideal for automated filling

for flat products, individual parts...

ENQUIRE NOW

Side gusset bags

good shape retention

space-saving at the POS

ideal for individual parts

bulk material

smaller devices...

ENQUIRE NOW

Multi-chamber bags

separating content

partial withdrawal

for multi-component systems,
kits, set articles...

ENQUIRE NOW

ALSO AVAILABLE AS

box covers

You can also purchase our topdry films as tailor-made sealable covers for industrial goods

Select

crate liners

You can also purchase our topdry films as tailor-made liners for crates, boxes, small load carriers and cartons

Select

small box liners (box bottom)

You can also purchase our topdry films as liners for smaller boxes, crates, and cartons (for large quantities)

Select

side gusset covers / liners

You can also purchase our topdry films as side gusset covers & liners (for large quantities)

Select

Alternative Forms

Bags on perforated rolls, tubular films, special solutions... ? Just ask your Ströbel expert.

ENQUIRE NOW

GET IN TOUCH

+49 (0)9101 99 420

Contact

GET IN TOUCH

+49 (0)9101 99 420

Contact

CAPABILTIES OF TOPDRY EMI-SHIELDING BAGS

Protection against

very good electro­static discharge

very good moisture

very good corrosion
with dessicants

very good dust, dirt

very good spray water

very good uv light

good temperature fluctuations

no; not recommended loss of aroma





Features

very good ESD protection

very good Corrosion protection
up to 5 years

very good weldable

very good can be labelled

very good temperature resistant

very good puncture resistant

very good water vapour barrier

very good leakage barrier

very good vacuum-capable / gas-tight

good printable

no; not recommended food-certified

no; not recommended aroma protection



applications

very good bulk material

very good granulate & powder

very good shipping

very good parts

very good storage

very good long term storage

very good overseas transport

good retail / POS

no; not recommended pasty goods

no; not recommended liquids

Ideal for

very good ESD electronics

good machine construction

good metal construction

good mould making

good military, aviation, space travel

good high-tech, technology

no; not recommended pharma, medical

no; not recommended chemical industry

no; not recommended food products



very good sehr gut    good gut    moderate, conditional mäßig, bedingt    no; not recommended nein; nicht empfohlen

TECHNICAL SPECIFICATIONS

ESD protection ESD Shielding Protection - safeguards very sensitive electronics
PREMIUM
EMI-SHIELDING
very good
Film Metallised PE film with aluminium barrier layer; Composite film; Look: Silver inside and outside
Energy-Test < 5 nJ
Surface Resistance
Typical values
105 – 1011 Ω
emi
Shielding very good
Dissipative very good
Faraday Cage
Volume-conductive
Suitable for
Inside EPA zones
very good
Suitable for
Outside EPA zones
very good
Standards IPC/JEDEC J-STD-033C
Corrosion protection Moisture protection    Corrosion Protection
very good
Duration
Corrosion protection (up to)
5 years
with Ströbel topdry® dessicants
moisture protection very good
water vapour barrier very good
Thickness Bags 100 µm
Other Qualities Bags
Layers Bags Antistatic ⎮ PET ⎮ ALU ⎮ PE ⎮ Antistatic
Temperature tolerance On request
Water vapour transmission rate ≤ 0,005 g/m2/day
Puncture resistance On request
Manufacture
Pouches

very good excellent    good good     moderate, conditional limited, depends    no; not recommended no; not recommended

RECOMMENDED

Dessicants Ströbel topdry®

Topdry® & MiniPax bind moisture. Essential for dry packaging and corrosion protection

Select

Humidity indicator cards

Measure & monitor humidity inside the packaging

Select

Heat Sealing Tongs

professional sealing of heat-sealable films; easy to operate; sealing-time adjustable; fast start-up time

Select

Transport Monitoring

Data-loggers, shock and tilt indicators. Monitor the transport conditions of your valuable products

Select

MANUFACTURED IN GERMANY

TAILOR-MADE
FOR YOU

Shorter, longer, higher, wider,...
Our experts manufacture your TOPDRY EMI-SHIELDING BAGS perfectly customised to your specific requirements.

MADE IN FRANKONIA, GERMANY

DOWNLOADS

OUR TOPDRY® EMI-SHIELDING GUARANTEE

"MADE IN FRANKONIA, GERMANY"

Our in-house production, German and European standards, certifications and selected supply chains guarantee: our TOPDRY EMI-SHIELDING BAGS are free of dangerous toxins. Our products have been designed  confectioned, assembled in Germany. We reject child labor and bad working conditions. No need to worry about inferior protective films and consequential damage to your valuable machines and products. The ESD- and barrier properties of our films are guaranteed.

Yours sincerly,
Rainer Ströbel

RESPONSIBLE MANUFACTURING

For all our TOPDRY EMI-SHIELDING BAGS we guarantee the following manufacturing conditions:

Origin

bag & pouch production
film production
Malaysia
sales & distribution

Sustainability

environmental standards
Malaysia
labour conditions
Malaysia
human rights
Malaysia

Standards

IPC/JEDEC J-STD-033C

Ecology

regional bag & cover production
(Ströbel, Germany)

regional / international supply chains

short transport routes preferred

two large on-site solar power plants

Contaminent-free

Yes

Certificates

ISO 9001

ISO 14001

Bavaria environmental pact

Honorable merchant

Ecovadis (bronz)
