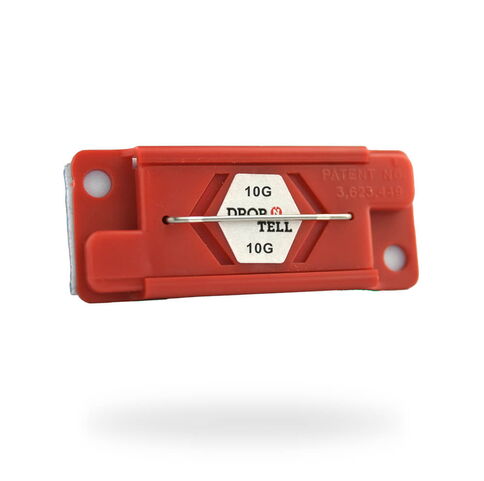

„ You know how important it is to manufacture products flawlessly and deliver them on time and without damage. DROP-N-TELL® shock indicators detect transport violations and reliably monitor your products. DROP-N-TELL® only triggers on one axis - i.e. when mounted horizontally or vertically, you can determine exactly where the impact came from. DROP-N-TELL® can be used in many ways: for single or multi-use, for internal and external transport.... ”
Florian Meier Packaging Consultant
1
axis
monitoring
(vertical or horizontal)
1000
KG max. weight
1,4+
m³ max. volume
5
G min.
sensitivity
100
G max.
sensitivity
yes
resettable
multi-use version
OUR STRÖBEL TIP
We recommend DROP-N-TELL® especially if you want to test internal transport lines or use the indicator several times.
Our resettable version is also best suited for experimenting with G-values.Matthias Mandel Sales Manager
TECHNICAL DATA
|
1 axis monitoring, vertical or horizontal |
| display | left / right or top / bottom |
| sensitivity | 5g 10g 15g 25g 50g 100g |
| shock duration | - no data - |
| for weight | 0 – 1000 kg |
| for volume | 0 – 1,4+ m³ |
| tolerance | ±20 %, ±2 g |
| reaction to | one impact |
| operation | mechanical/ magnetic |
| can be activated? | yes & resettable version |
| security | - no data - |
| how often usable? | Drop-N-Tell Irreversibel: once Drop-N-Tell Reversibel: multi-use |
| mounting location on package | on the parcel, on the outside of the packaging |
| operating range | - no data - |
| shelf life | unlimited |
| storage conditions | - no data - |
| mounting type | self-adhesive back, two drill holes |
| dimensions | 51,5 x 21,6 x 7 mm |
| PU | 100 pieces / carton |
INDICATION BEHAVIOUR
When the indicator turns DARK ...
This impact indicator provides proof when the shipment is subjected to an impact in transit. Drop-n-Tell only triggers on one axis. Either the horizontal or vertical axis can be monitored.
ADVANTAGES DROP-N-TELL®
immediate display
potential damage is instantly indicated by shockwatch® label and logged at destination
up to 50% less transport damage
reduce the occurrence of transport damage in many cases by more than 50%.
avert damage claims
possible damage claims can be reduced or avoided.
easier claims settlement
damage settlement takes place mainly between the carrier and the recipient.
Increase the trust of your customers
customer satisfaction improves as it is ensured that the goods arrive intact.
CORRECT PLACEMENT
DROP-N-TELL® are attached to the outside of the package.
They are self-adhesive and can alternatively be screwed firmly to e.g. wooden crates by means of the 2 drill holes.
The freight process in 5 steps
How to integrate DROP-N-TELL® into your shipping concept
STRÖBEL IMPORTANT INSTRUCTIONS
Be sure to share the following information with your clients:
PACKAGE CONTENTS
Quantity: 100 pieces / carton and each DROP-N-TELL® unit consists of...
CONFIGURATOR
All Drop-N-Tell® impact indicators are available in the following sensitivities
5g 10g 15g 25g 50g 100g
and in the following product versions for single or multi-use:
Find the right DROP-N-TELL for your purposes.
All values refer to your entire package
including packaging ( including box, pallet,...).
1. First of all, please select the weight.
2. choose the m³ volume.
You can use our m³ calculator to determine the volume.
m³
-
100 Glight, smaller packages
-
50 Glight to medium-weight packages
-
25 Glight to heavy goods
-
15 Gheavy goods
-
10 Gheavy to very heavy goods
-
5 Gvery heavy goods
-
100 Glight, smaller packages
-
50 Glight to medium-weight packages
-
50 Glight to medium-weight packages
-
50 Glight to medium-weight packages
-
25 Glight to heavy goods
-
25 Glight to heavy goods
-
25 Glight to heavy goods
-
25 Glight to heavy goods
-
15 Gheavy goods
-
15 Gheavy goods
-
10 Gheavy to very heavy goods
The suggested values should always be used as a starting point only. Packaging and construction can influence the relationship between impact force and DROP-N-TELL® activation. Consult with us !
