    • STRÖBEL TOPDRY® DESICCANTS BAGS

    NO additional import charges!

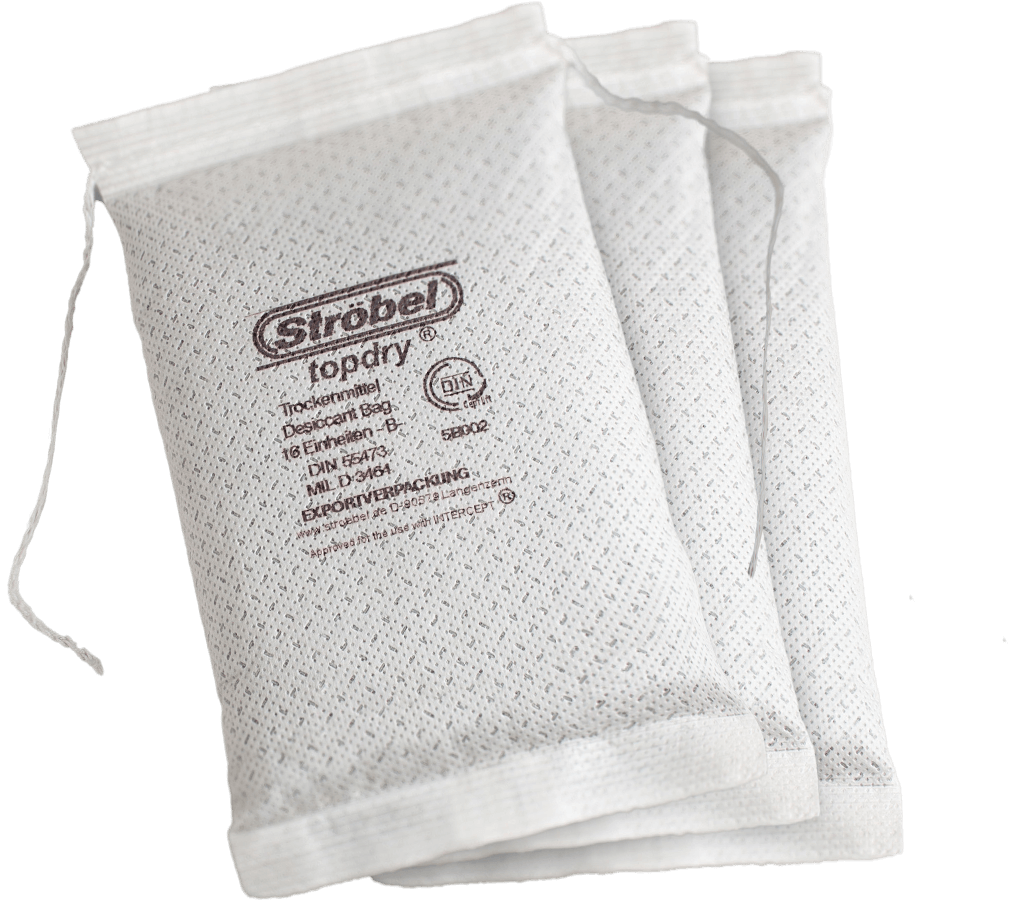

    POWERFUL PROTECTION AGAINST CORROSION & MOISTURE: Ströbel topdry® desiccants ensure ideal shipping & storage conditions according to DIN 55473 and protect moisture-sensitive goods. Ströbel topdry® desiccant bags feature dust-proof wrapping and are filled with bentonite, a natural product. Bentonite absorbs about 6 grams of water vapour per DU at a relative humidity of 40%. Automotive, steel, electronics, industrial goods, military technology, medications, pharmaceuticals, food.... are actively protected against corrosion and mould.

    • powerful protection
    • create an ideal climate
    • according to DIN 55 473
    • according to MIL-D-3464
    • DIN Certco tested
    ENQUIRE
    Ströbel Aluminum composite covers & liners

    „

    Ströbel topdry® is available in small to large sizes. Desiccants are traded in so-called desiccant units (DU). 1 DU unit absorbs approx. 6 g of water vapour. We are happy to calculate the exact desiccant requirement for you. Important for the calculation are a) the storage & shipping time and b) the water vapour permeability of the barrier layer! Without a high-quality barrier film, desiccants are practically ineffective. Unhindered moisture would saturate and eventually overload the dry packaging. THEREFORE...



    In contrast to often unsatisfactory Far East goods, Ströbel offers you German premium quality and certifications. The barrier properties of our films are guaranteed... ”

    Heidi Dürnhofer Team Corrosion Protection
    Matthias Mandel Head of Sales

    Ströbel topdry® for

    Pharma & Medical Products

    SICHER. GUT. VERPACKT.



    Ströbel topdry® for

    MACHINE ENGINEERING

    SICHER. GUT. VERPACKT.



    Ströbel topdry® for

    ELECTRONICS

    SICHER. GUT. VERPACKT.



    Ströbel topdry® for

    (Spare) Parts

    SICHER. GUT. VERPACKT.



    Ströbel topdry® for

    Plant Technology

    SICHER. GUT. VERPACKT.



    DESSICANT CALCULATOR PLUS

    for box covers and liners

    • Please fill in all relevant fields in mm.
    • The bottom sheet data is optional and can be ignored, e.g. when sealing via stretch closure.
    • If transport & storage times are not known, an average value of 180 days is assumed.
    • Choose between our powerful & trusted ALU-Line film "topdry premium AL+VS" or PE-Line film "LDPE 200 µm".

    For other Ströbel films such as Intercept Technology®, topdry EMI-Shielding, etc. as well as other thicknesses, please simply contact us. We are happy to calculate the appropriate quantity for you.

    YOUR MEASUREMENTS

    cover / liner

    length
    width
    height

    bottom sheet
    optional

    transport / storage time
    in days

    film type

    YOUR RESULT

    You need ... DU Ströbel topdry® dessicant. The surface area of your packaging equals ... m2.

    IMPORTANT: We recommend as a general rule and especially in elongated packaging that desiccant bags are evenly distributed in the upper part of the packaging.
    ... DU correspond to the following bag sizes...

    0 x
    32 DU

    0 x
    16 DU

    0 x
    8 DU

    0 x
    4 DU

    0 x
    2 DU

    0 x
    1 DU

    0 x
    1/2 DU

    0 x
    1/3 DU

    0 x
    1/6 DU

    PRODUCT RANGE

    DU approx. weight bag material basic pack carton contents pallet
    1/6 6 g Tyvek 100 pieces 1.000 pieces 36.000 pieces Enquire

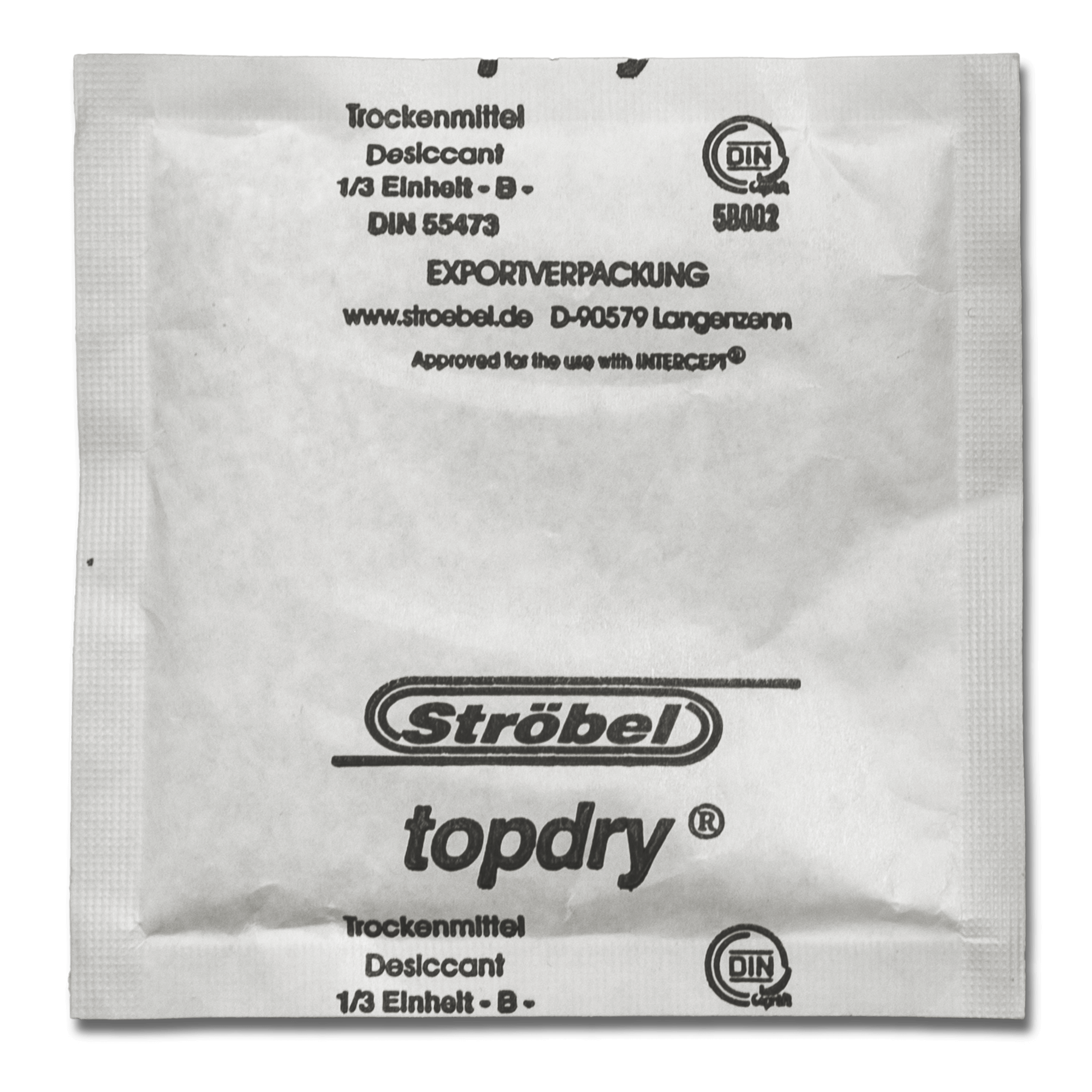

    1/3 12 g paper 80 pieces 800 pieces 28.800 pieces Enquire
    1/2 18 g paper or Tyvek 60 pieces 600 pieces 26.600 pieces Enquire
    1 36 g paper or Tyvek 50 pieces 400 pieces 14.400 pieces Enquire
    2 75 g fleece | non-woven or Tyvek 30 pieces 240 pieces 8.640 pieces Enquire
    4 150 g fleece | non-woven or Tyvek 15 pieces 120 pieces 4.320 pieces Enquire
    8 300 g fleece | non-woven or Tyvek 10 pieces 70 pieces 2.520 pieces Enquire
    16* 590 g fleece | non-woven 5 pieces 35 pieces 1.260 pieces Enquire
    32* 1180 g fleece | non-woven 3 pieces 18 pieces 648 pieces Enquire

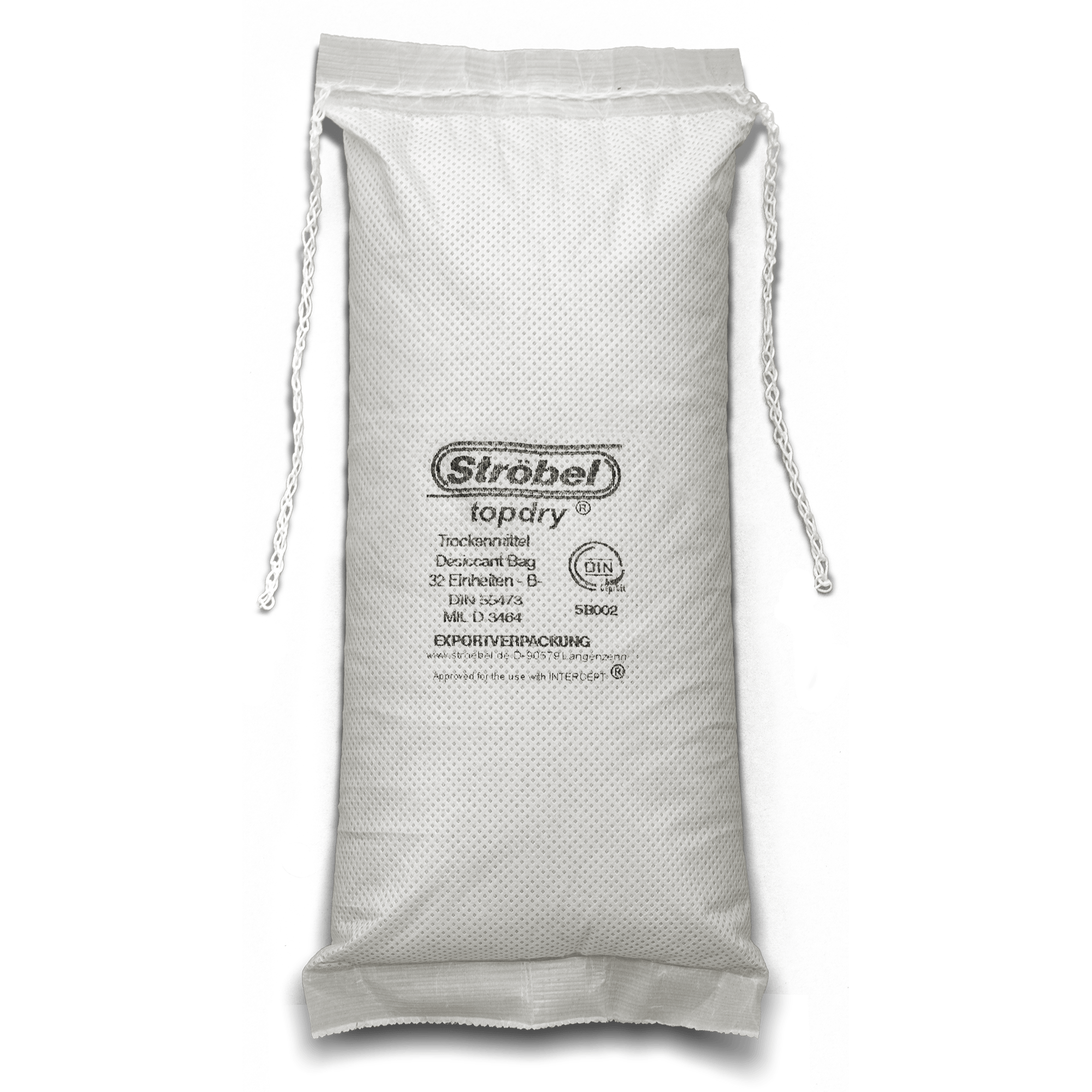

    * from 16 desiccant units (DU) upwards, the bags are supplied with a suspension cord.

    STEP BY STEP

    How to correctly pack with Ströbel TOPDRY® DESICCANTS BAGS and the dessicant method.

    RELIABLE PROTECTION

    IN 4 SIMPLE STEPS

    with TOPDRY® DESICCANTS BAGS

    1. LAY DOWN

    THE OPTIONAL BOTTOM SHEET

    The bottom sheet is necessary for sealing from below.

    2. PLACE AND BOLT DOWN YOUR MACHINE

    THEN ADD DESSICANTS

    If possible, desiccants should be placed in the upper section of the packaging to avoid condensation. We are happy to calculate the correct quantity for you.

    4. SEALING

    BOTTOM SHEET AND COVER ARE WELDED TOGETHER

    Towards the end of the process, though the last small last opening, approx. 70% of the remaining air is vacuumed out of the packaging in order to still ensure sufficient air circulation. Afterwards the cover is sealed completely.

    ALL DONE

    THE STRÖBEL PROTECTIVE ATMOSPHERE IS ACTIVATED

    Our strong barrier film and Ströbel topdry® desiccants now regulate the humidity inside the packaging and protect against corrosion and many other influences for up to 10 years.
