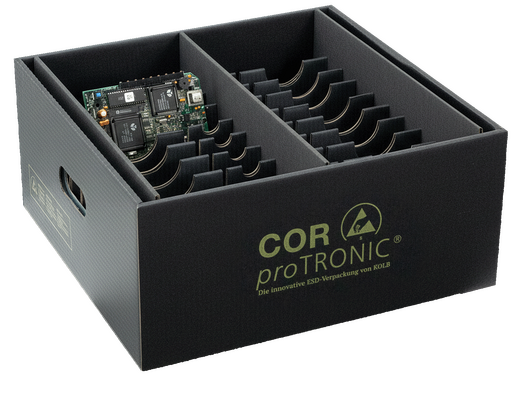

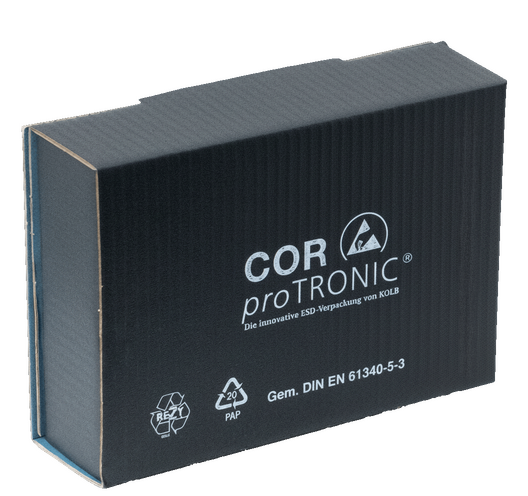

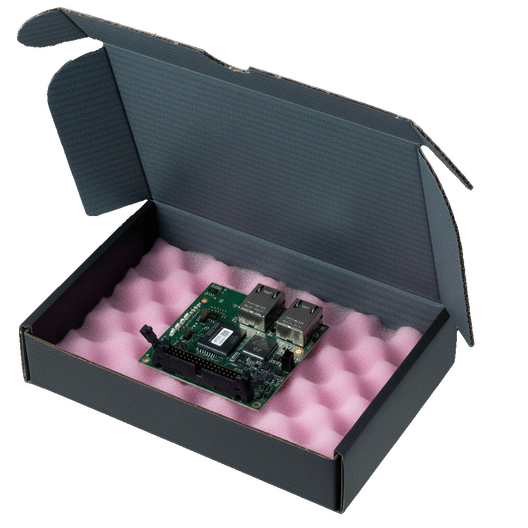

CORSTAT® & CORTRONIC® ESD CARDBOARD BOXES

CORSTAT / CORTRONIC EGB/ESD cardboard boxes are available for gentle potential equalization and therefore perfect antistatic protection.

  • protect sensitive components
  • safe in ESD protection zones
  • smooth potential equalization
  • in accordance with EN/IEC 61340-5-1
ENQUIRE

„ CORSTAT / CORTRONIC ESD cartons protect your products reliably. The discharge happens anyway, but in a restrained manner. Thereby it can no longer harm your product... ”

Christa Sulzer Team ESD Protection
Nadja Weißkopf Team ESD Protection
Matthias Mandel Head of Sales

TECHNICAL SPECIFICATIONS

  Corstat™ Cortronic®
ELEKTRISCH
Oberflächenwiderstand:
Abschirmschicht Ohm(1- oder 2-schichtig) ohne Schwermetall
< 10^4 < 10^2
Ableitschicht Ohm 10^5 - 10^6 10^7 - 10^9
Abfallzeit < 1 sec. < 1 sec.
Reibungselektrizität keine keine
Oberflächen schwarz blau, Standard
Energy Bag Test nach EOS/ESD 11.31 EN61340-5-1 14,6 nJ 3,4 nJ
CHEMISCH
Korrosion keine keine
Galvanische Reaktion keine keine
Recyclingfähig Resy 0062 Resy 0062
MECHANISCH
Ausgangsmaterial-Decken 100% Kraftliner 100% Kraftliner
Durchstoßfestigkeit/Joule(z.B. 1.36 B-Welle) 5,4 5,4
Abriebsfestigkeit (Oberfläche versiegelt) gut gut
Bedruckbarkeit bedingt gut
Feuchtigkeit keine Beeinträchtigung der elektrischen Eigenschaften keine Beeinträchtigung der elektrischen Eigenschaften
GEWICHT z.B.
L 600 B 400 H 120 mm 0,58 kg 0,58 kg
Zertifiziert nach ISO 9001 ISO 9001
Entspricht EN/IEC 61340-5-1 EN/IEC 61340-5-1
Geschützt durch Patent erteilt Patent erteilt
